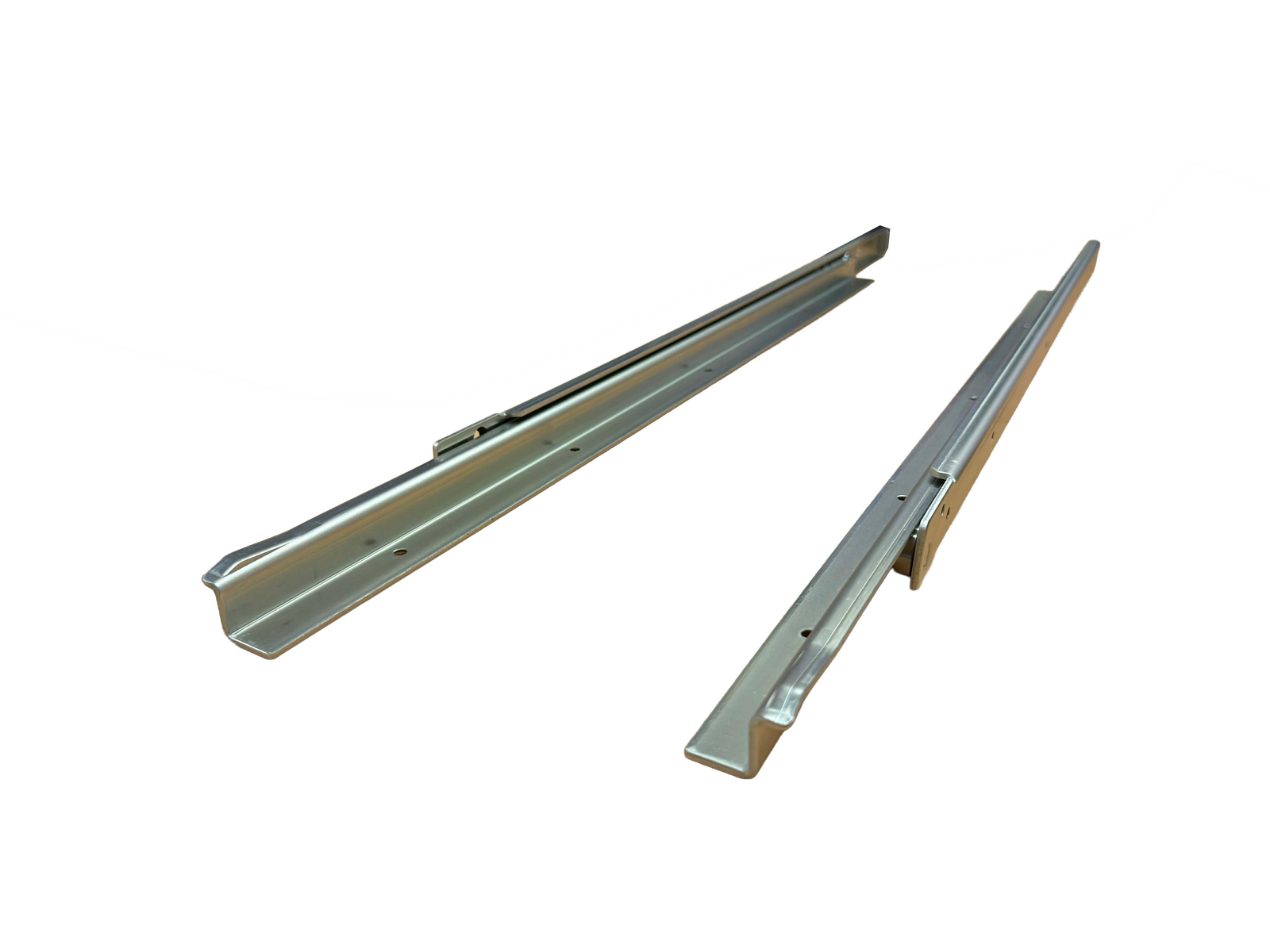

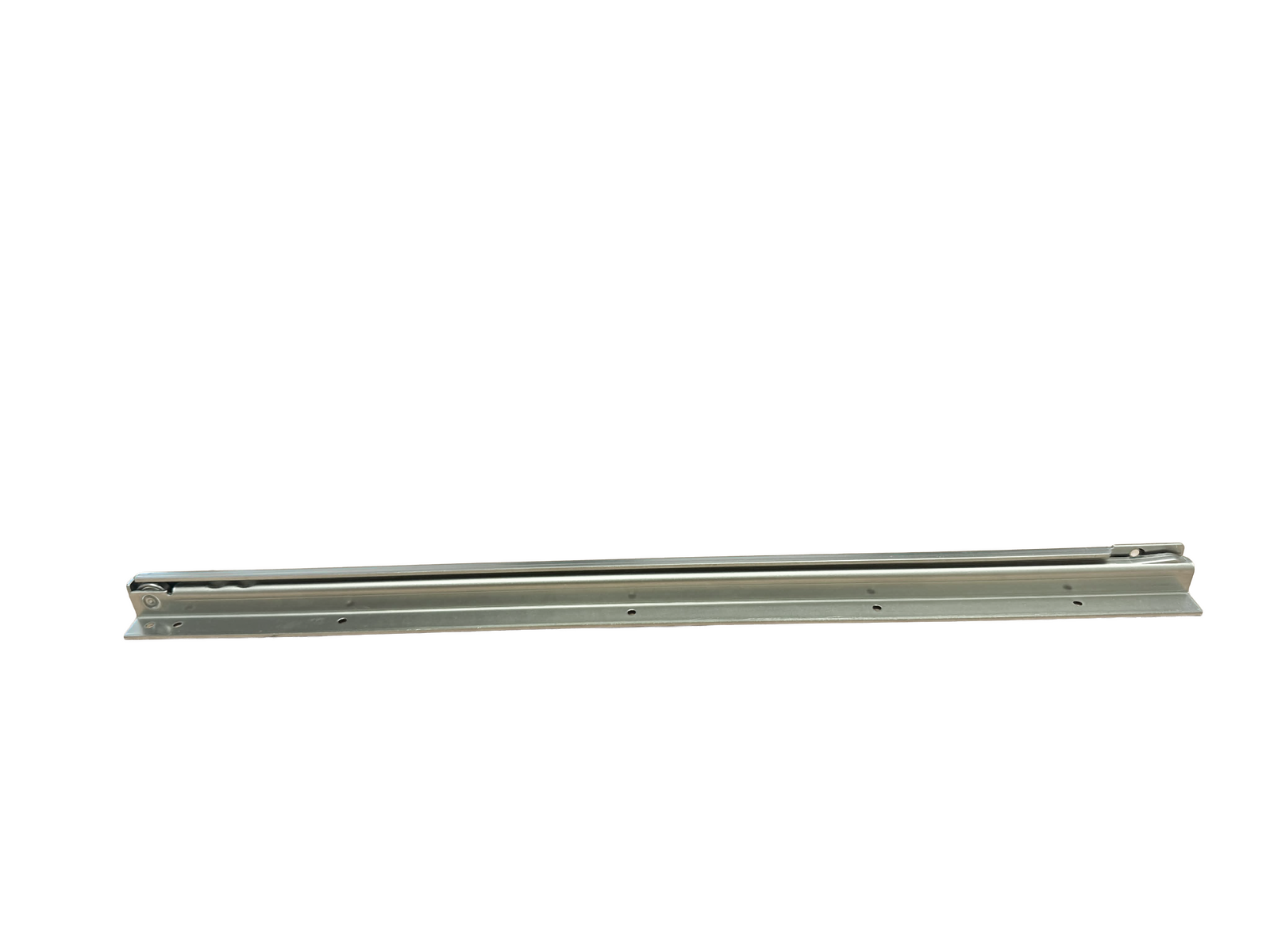

100kg Drawer Slide - Bottom Mounting

Zinc plated 100kg bottom mounting Hafele drawer slide. Full extension leaves no wasted space.

Availability: In stock

Price From: $49.90

* Required Fields

10% Discount

Subscribe to receive 10% off your 1st order.

We will send this product in 2-3 business days. Read more...

Call us now to speak to a product specialist. Phone 1300 767 567.

Product Description

Details

Strong and durable Hafele drawer slides. Weight capacity of these soft drawer runners meets the needs of all but the most demanding applications. Suits 4WD and camper trailer applications such as slide out fridges.

NOTE: Price is for a PAIR of drawer slides.

Features:
  • Load capacity: 100 kg/pair
  • Available in lengths 450mm - 1000mm
  • 3/4 extension
  • Material: Steel
  • Finish: Galvanised

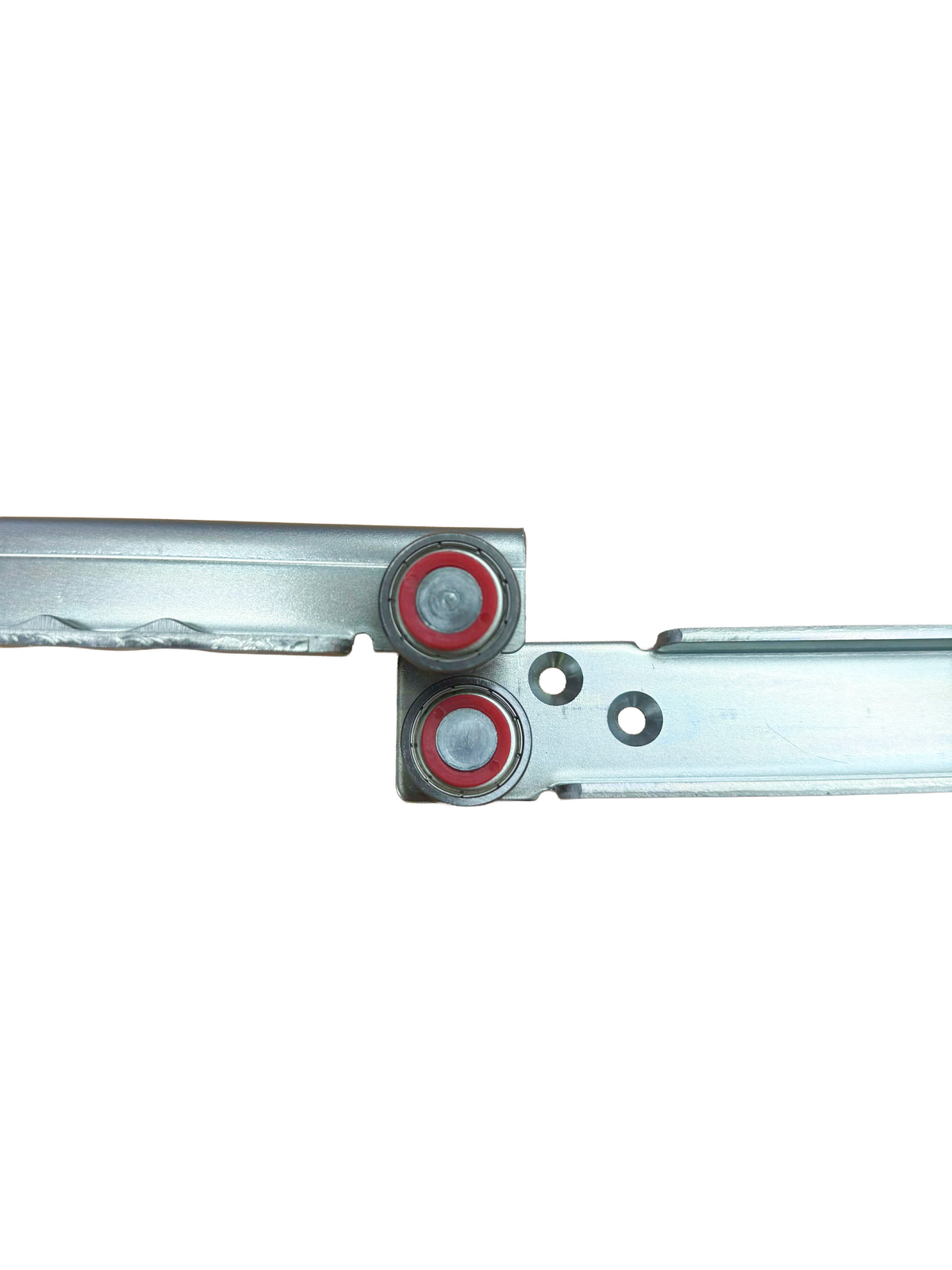

  • Guided by: 4 roller ball bearing with wear resistant ‘red’ urethane
  • Only two moving parts
  • Simple installation
  • Sealed bearings - resists deterioration
  • Fitting to the side panel: bolt or screw fixing
  • Fitting to drawer: bolt or screw fixing, bottom mounted
  • Perfect for off road environments
  • European made ‘top end’ quality

Installation

This top quality product has been tested in the Australian environment. Please note a few things to consider during installation.

  • When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.
  • Depending on substrate, stainless steel 'flat head' hex screws with NY-lock nuts or stainless steel rivets are recommended.
  • There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
  • Our slides are designed to be mounted horizontally and paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.
  • Any questions please contact our office on 1300 767 567.
Drawer Slide Sizing Guide
    Length (mm)
  300 350 400 450 500 550 600 700 800 900 1000 1100 1200 1300 1400 1500 1500+
Weight (kg) carrying capacity at full extension
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
201+

Slide Weight Rating
Slide Type 45kg 125kg 160kg 227kg 400kg 1 tonne
