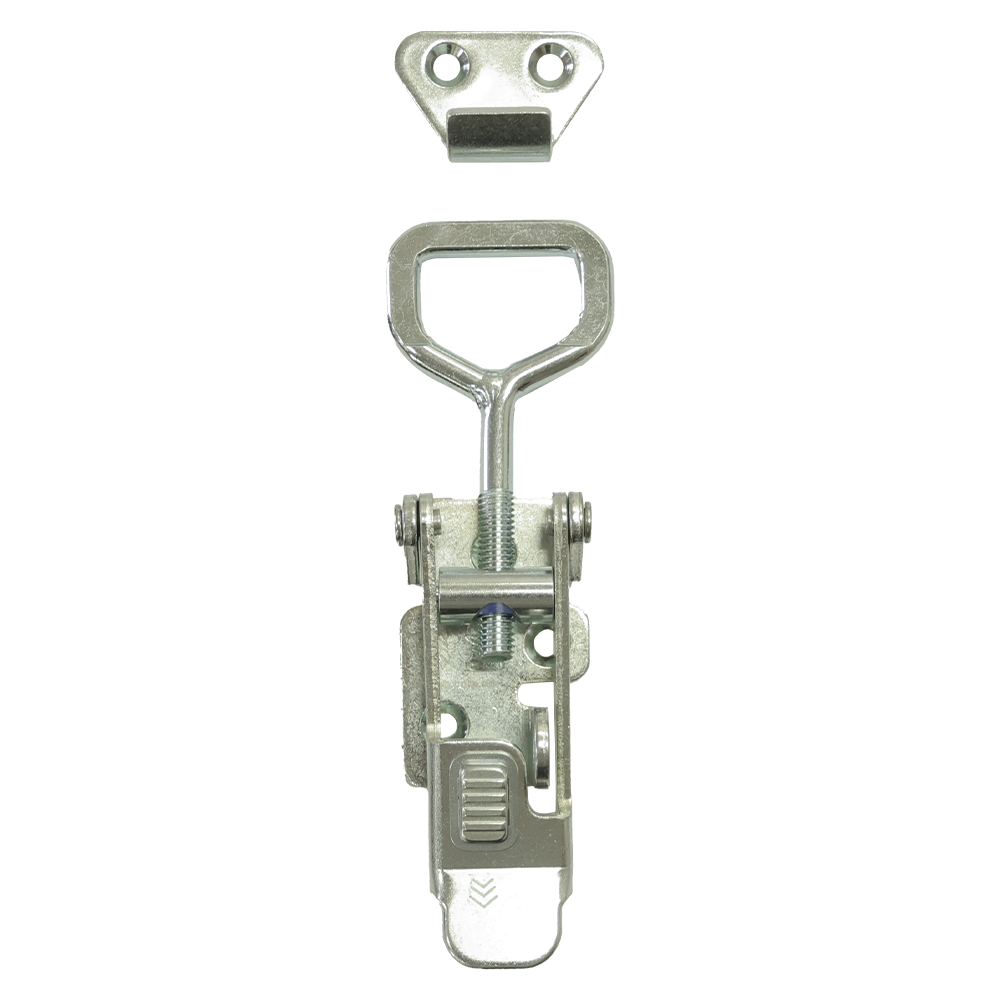

Draw Latch Slam Lock 165mm Zinc Plate CT-5230-W

Introducing our latest addition to the over-centre latch range — a high-performance latch with padlock able security, slam-to-lock convenience, and a sprung sliding thumb release mechanism. This robust latch is engineered for quick, secure closure and is ideal for applications where strength, speed, and safety are critical.

Key Features:

• Padlock able Design: Integrated eyelet accommodates standard padlocks for added security.
• Slam-to-Lock Mechanism: Allows the latch to engage and lock automatically when slammed shut — no manual locking required.
• Sprung Sliding Thumb Release: Easy and ergonomic one-hand operation with a spring-loaded release for smooth, controlled disengagement.
• High Strength Over-Centre Action: Provides consistent, vibration-resistant closure.
• Nyloc-nut:  Provides catch adjustment, keeps the catch at desired reach.
• Multi-Finish Options:
  • Zinc-Plated Steel – Corrosion resistant for general industrial applications.
  • 304 Grade Stainless Steel – Ideal for marine, food-grade, or outdoor environments.
  • Electroplated Black Finish – Unique in its class; offers a sleek, modern look with enhanced corrosion protection.

Applications:

• Toolboxes & Utility Cases
• Vehicle Canopies & Trailers
• Industrial Machinery Panels
• Enclosures & Access Doors
• Heavy-duty Storage Units
• RoHS Compliant Materials
