Drawer slide - 45kg non-locking - 300mm Soft Close

SKU: DSCHLDSC300

$30.20
Share:

300mm Soft Close


Closed And Extended Length

Per pair

Calculate Shipping



Pick-up from store - $0.00
Free pick up from our Brisbane and Perth stores is available. Once your order is processed, we will contact you to confirm that your order is ready for collection.


Description

Soft closing telescopic drawer slides suits applications for holding light objects. Domestic or light industry installations, toolboxes etc.

NOTE: Price is for a PAIR of drawer slides.

Features:

  • Load capacity: 45 kg/pair
  • Soft closing mechanism
  • Lengths: 300mm - 700mm
  • Material: Steel
  • Finish: Zinc plated
  • Guided by: 2 ball cages
  • Fitting to the side panel: Screw fixing
  • Fitting to drawer: Screw fixing, side mounted

Please note that drawer slides support approximately 30% less weight capacity than indicated by their nominated rating when at full open extension. Please consult the weight load chart for further details.

Installation

This top quality product has been tested in the Australian environment. Please note a few things to consider during installation.

  • When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.
  • Depending on substrate, stainless steel 'flat head' hex screws with NY-lock nuts or stainless steel rivets are recommended.
  • There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
  • Our slides are designed to be mounted horizontally and paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.
  • Any questions please contact our office.

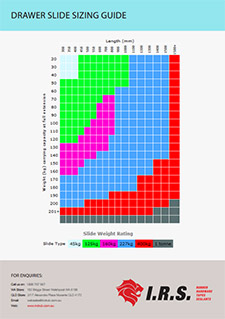

Drawer Slide Sizing Chart

  • See chart in images.

Drawings


Datasheet


Product video
