DSCHHD600MM - 585mm extended aluminium 300kg

SKU: DSCHHD600MM-300KG

$526.24
Share:

Closed And Extended Length


Calculate Shipping



Pick-up from store - $0.00
Free pick up from our Brisbane and Perth stores is available. Once your order is processed, we will contact you to confirm that your order is ready for collection.


Description

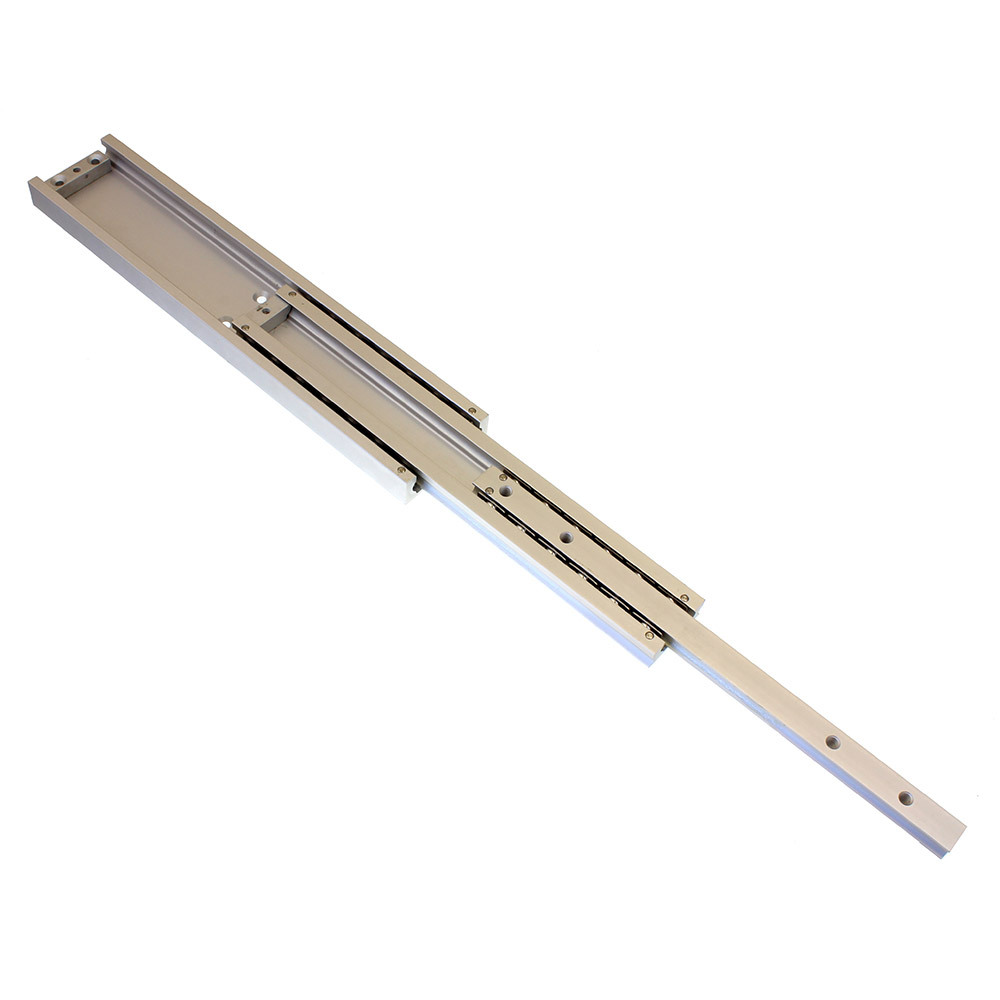

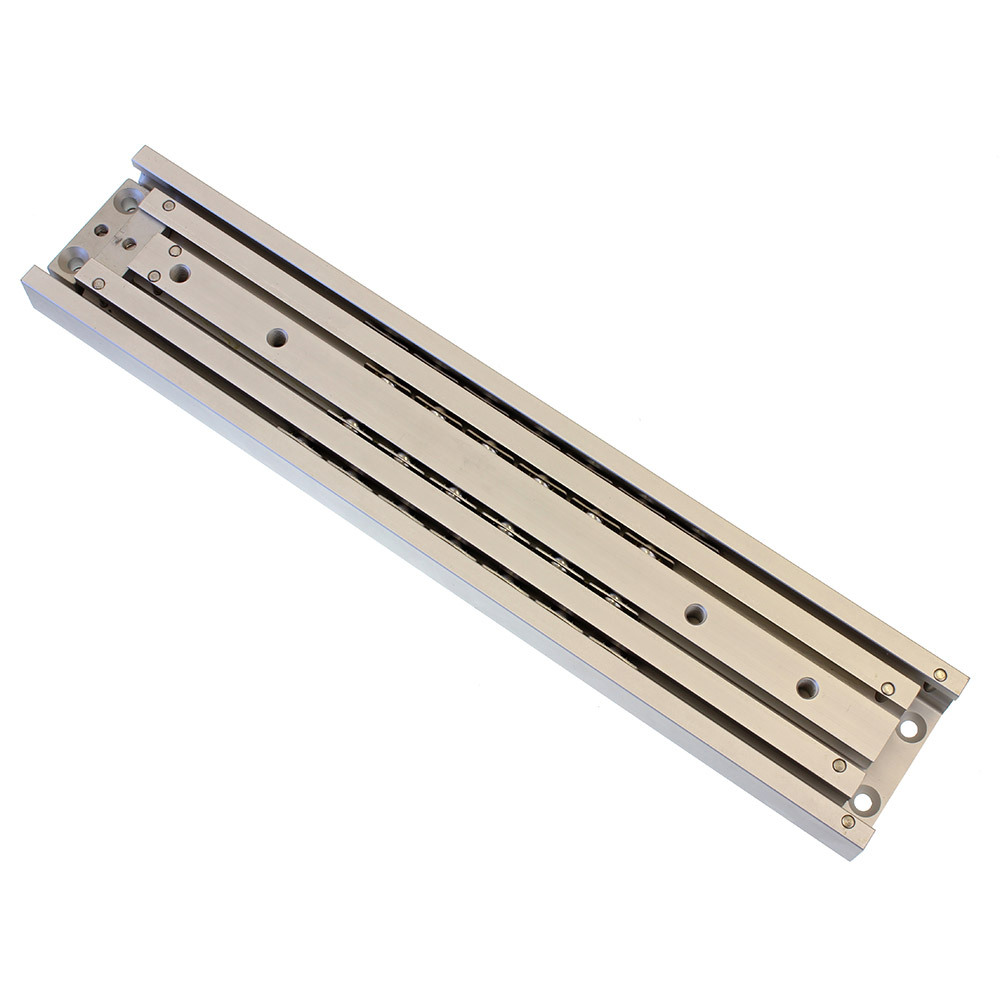

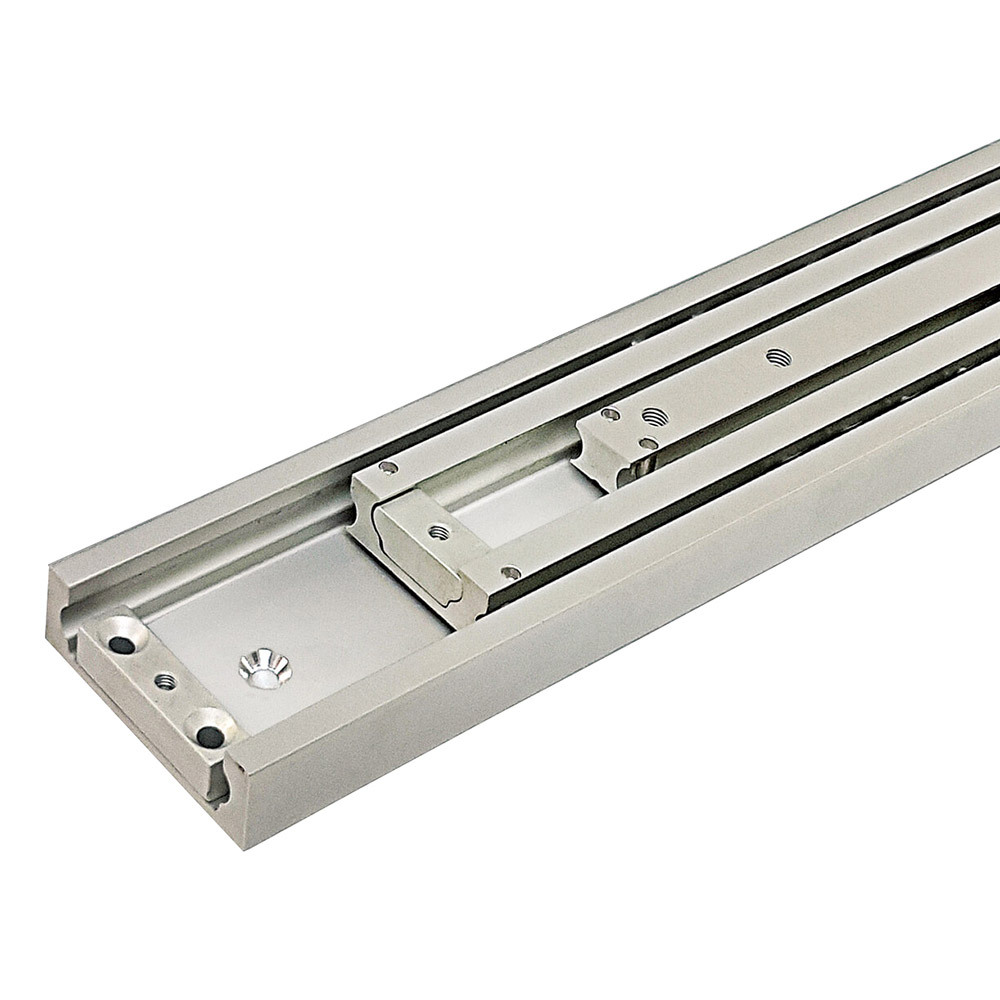

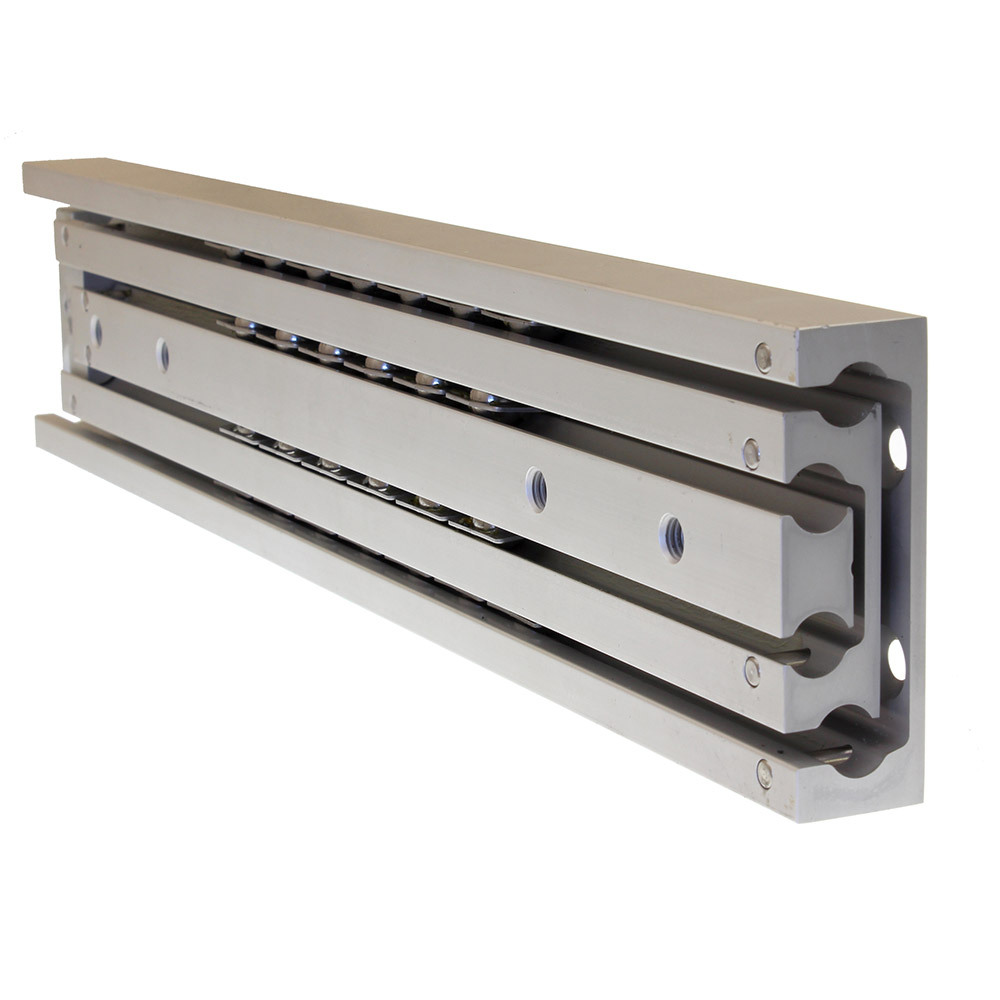

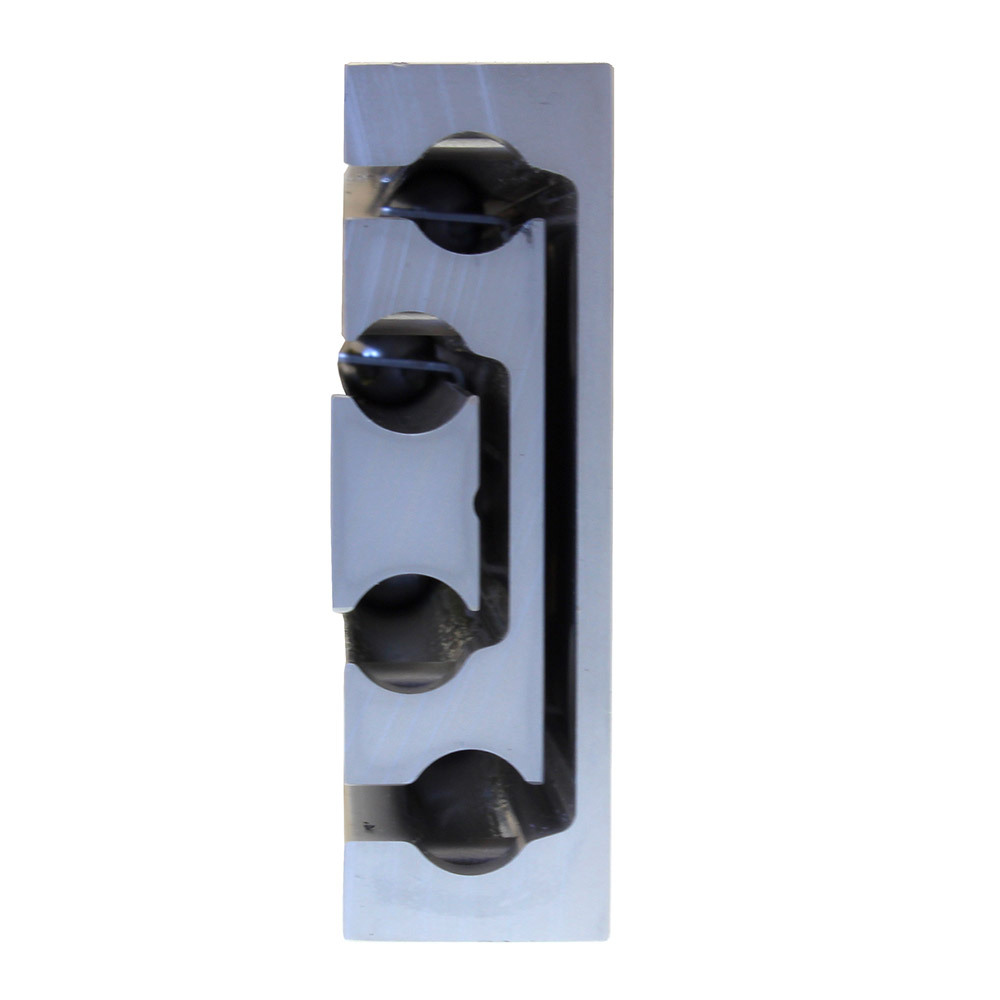

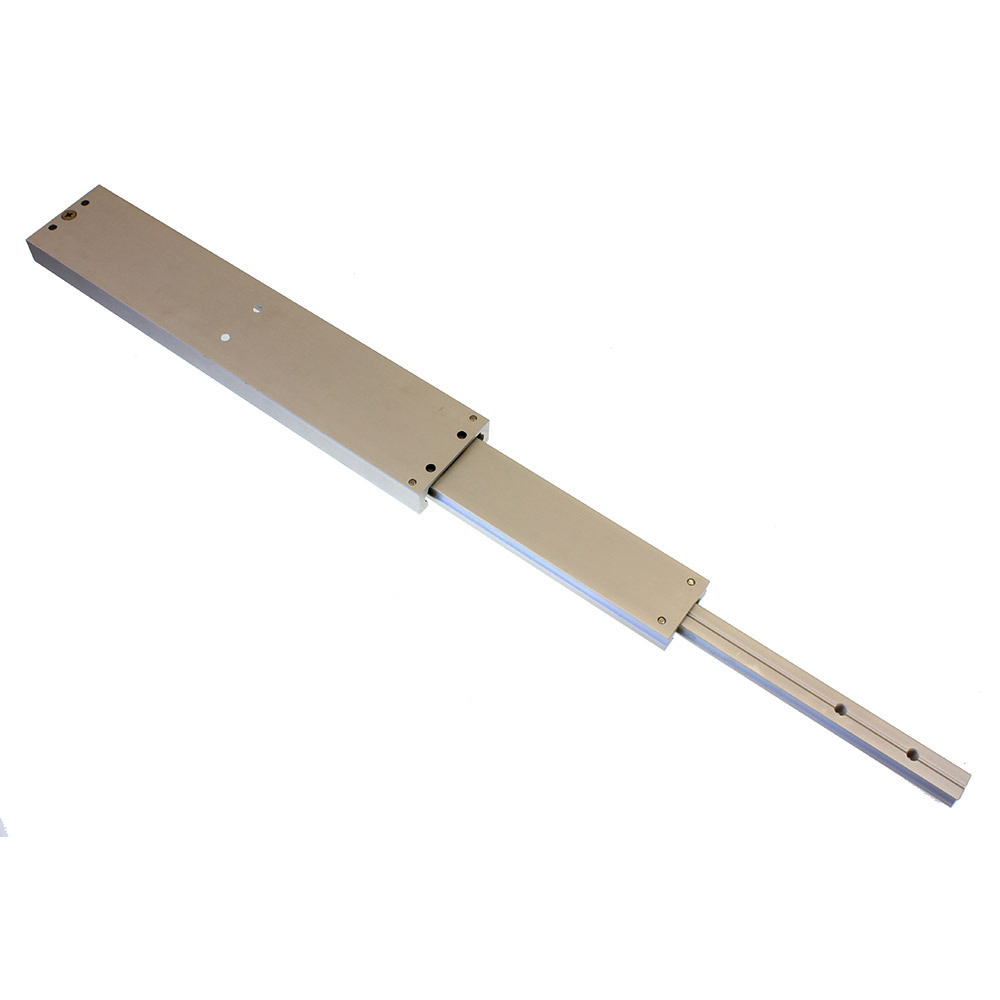

  • 300kg TUMA drawer slide - extended aluminium
  • For super heavy duty slides application
  • Emergency vehicles and transportation
  • Enclosures for data storage and communication
  • Machinery and tool storage
  • Various lengths
  • 300kg TUMA drawer slide - extended aluminium tough and robust and great for Fire Trucks or leisure environments utes, vans, camper trailers.

Features:

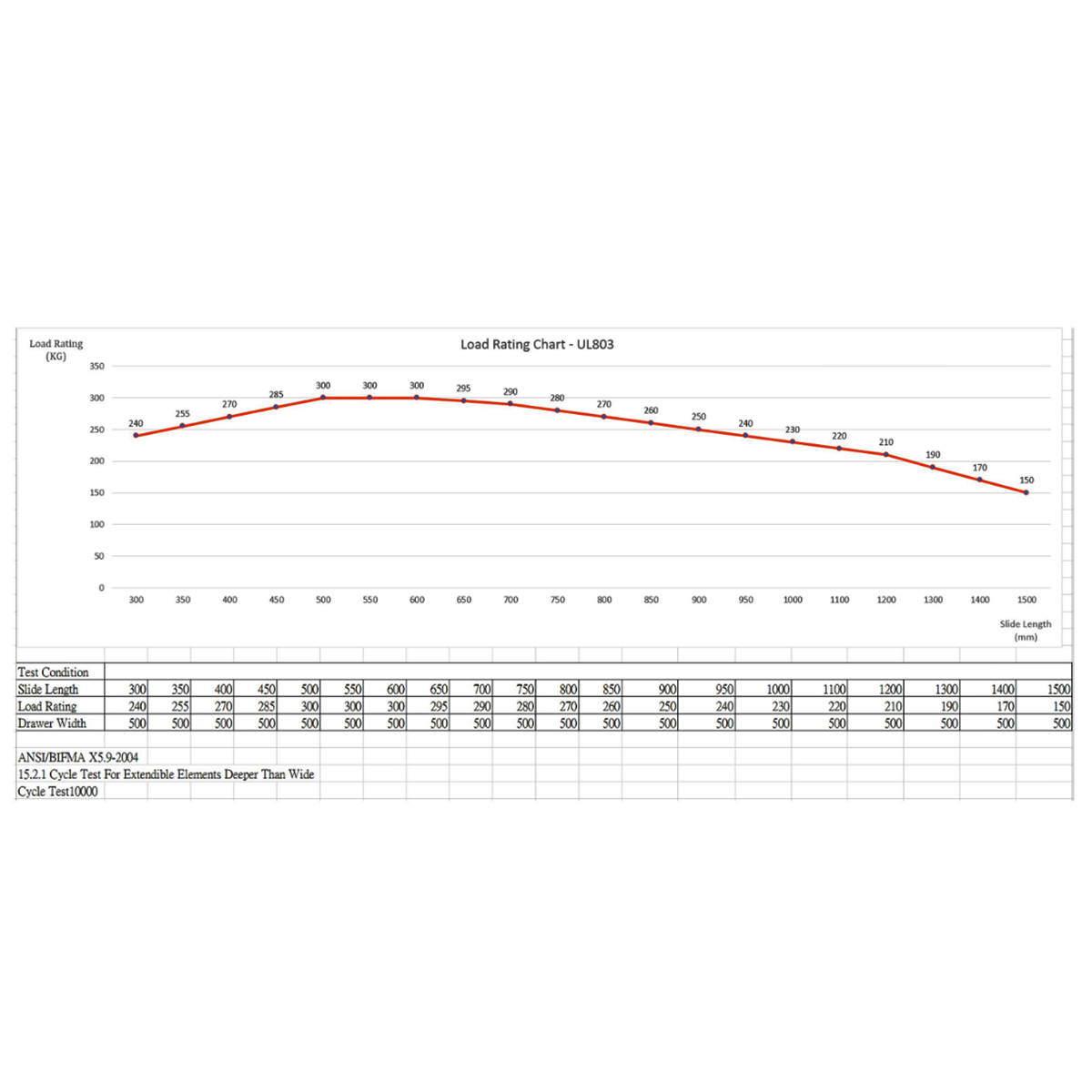

  • Load capacity: 300kg/pair
  • Available in lengths 300mm - 1000mm
  • Material: aluminium 7075 alloy (aerospace grade)
  • Coating: anodized aluminium, corrosion resistance more than 100hr salt spray test
  • Full extension

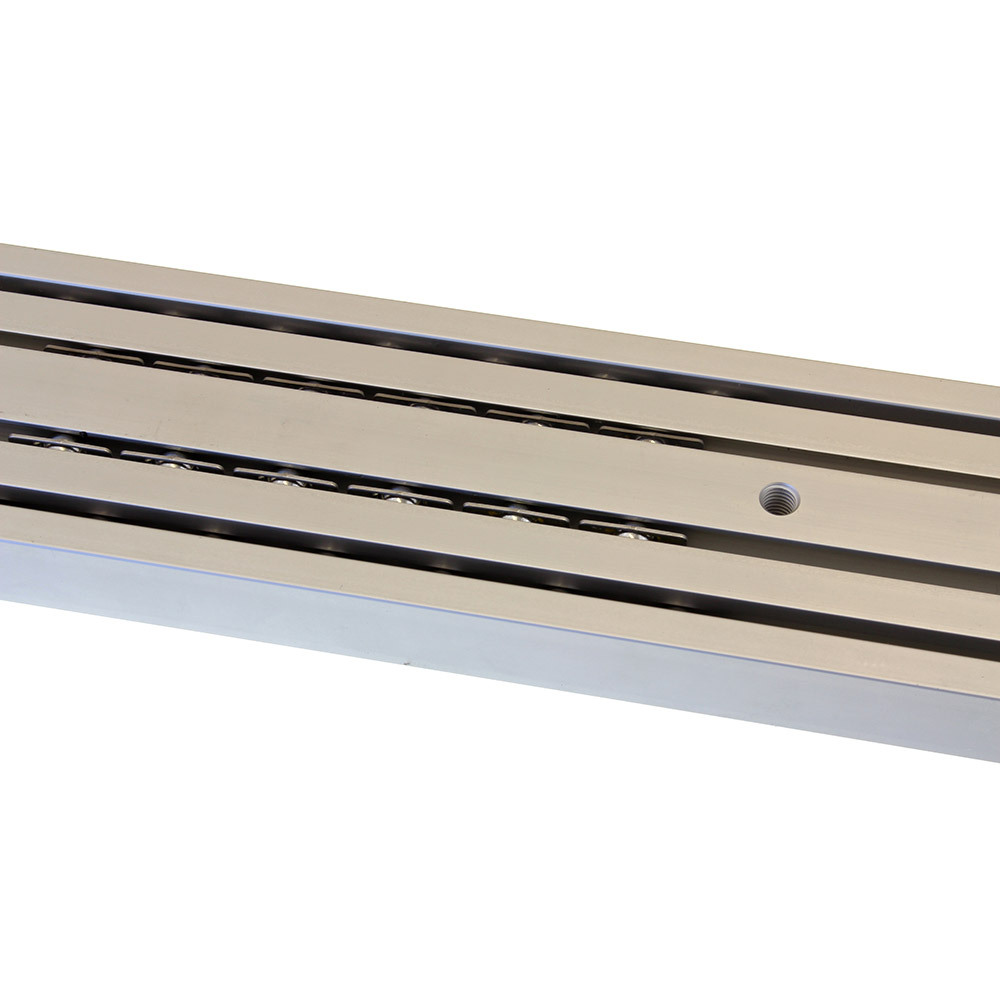

  • Guided by: 2 ball cages

Installation

This top quality product has been tested in the Australian environment. Please note a few things to consider during installation.

  • When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.
  • Depending on substrate, stainless steel 'flat head' counter sunk heavy duty screw / NY-lock nuts or stainless steel rivets are recommended.
  • There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
  • Our slides are designed to be Side mounted paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.
  • Any questions please contact our office.

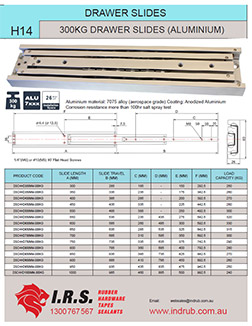

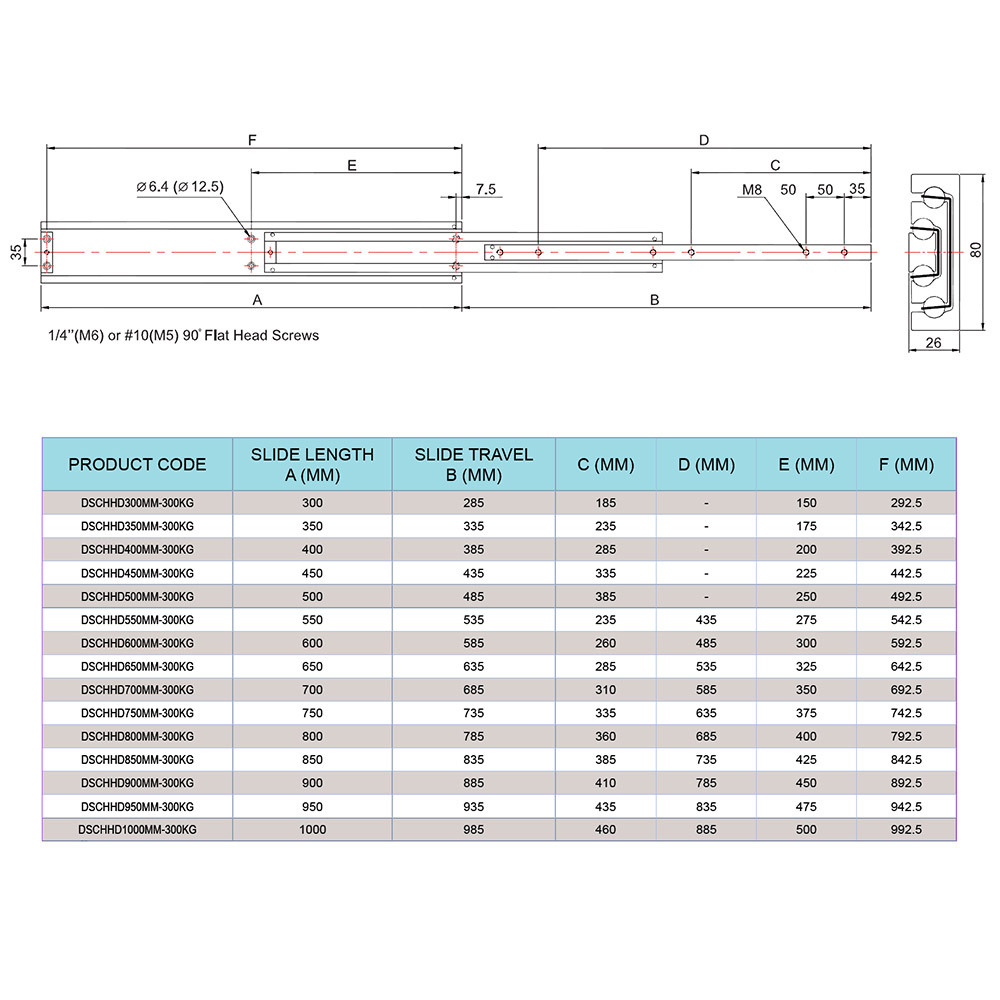

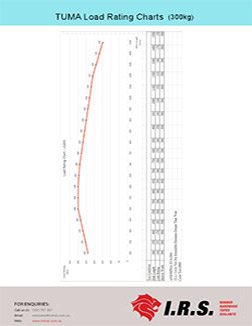

Datasheet
