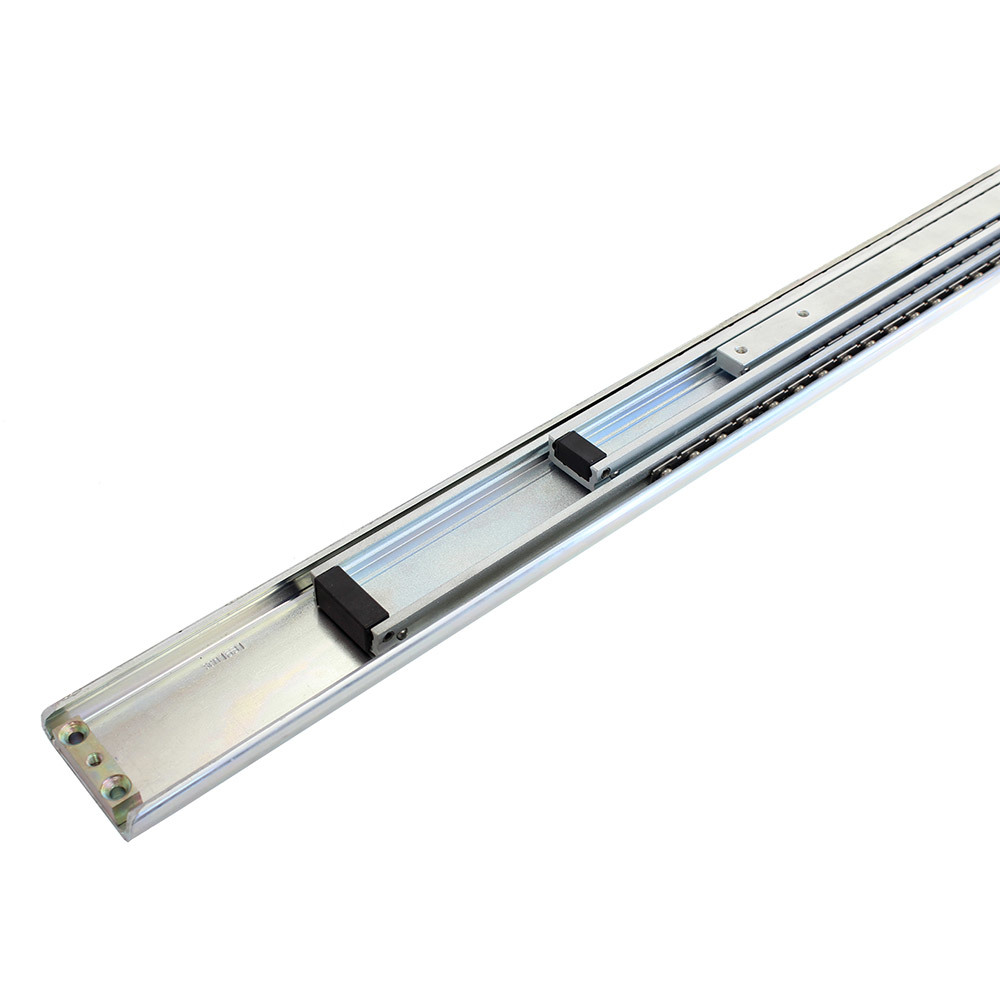

200kg over extended drawer slide - 500mm

SKU: DSCHHD500MM-OE-200KG

$437.80
Share:

Super heavy duty


Closed And Extended Length

Per pair

Calculate Shipping



Pick-up from store - $0.00
Free pickup from our Brisbane and Perth stores is available. Once your order is processed, we will contact you to confirm that your order is ready for collection.


Description

Features

  • Super heavy duty over extension TUMA drawer slides
  • Loading rate: 200kg
  • Extension: 150%
  • Suitable for:
    • Emergency vehicles and transportation
    • Enclosures for data storage and communication
    • Machinery and tool storage
  • Available lengths: 500, 800, 900, 1000 (call to enquire about other lengths)

Installation

This top quality product has been tested in the Australian environment. Please note a few things to consider during installation.

  • When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.
  • Depending on substrate, stainless steel 'flat head' hex screws with NY-lock nuts or stainless steel rivets are recommended.
  • There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
  • Our slides are designed to be mounted horizontally and paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.
  • Any questions please contact our office.

Datasheet


Product video
