Heavy Duty 227kg Drawer Slides (Non Locking)

SKU: DS422.65NL

$80.74
Share:

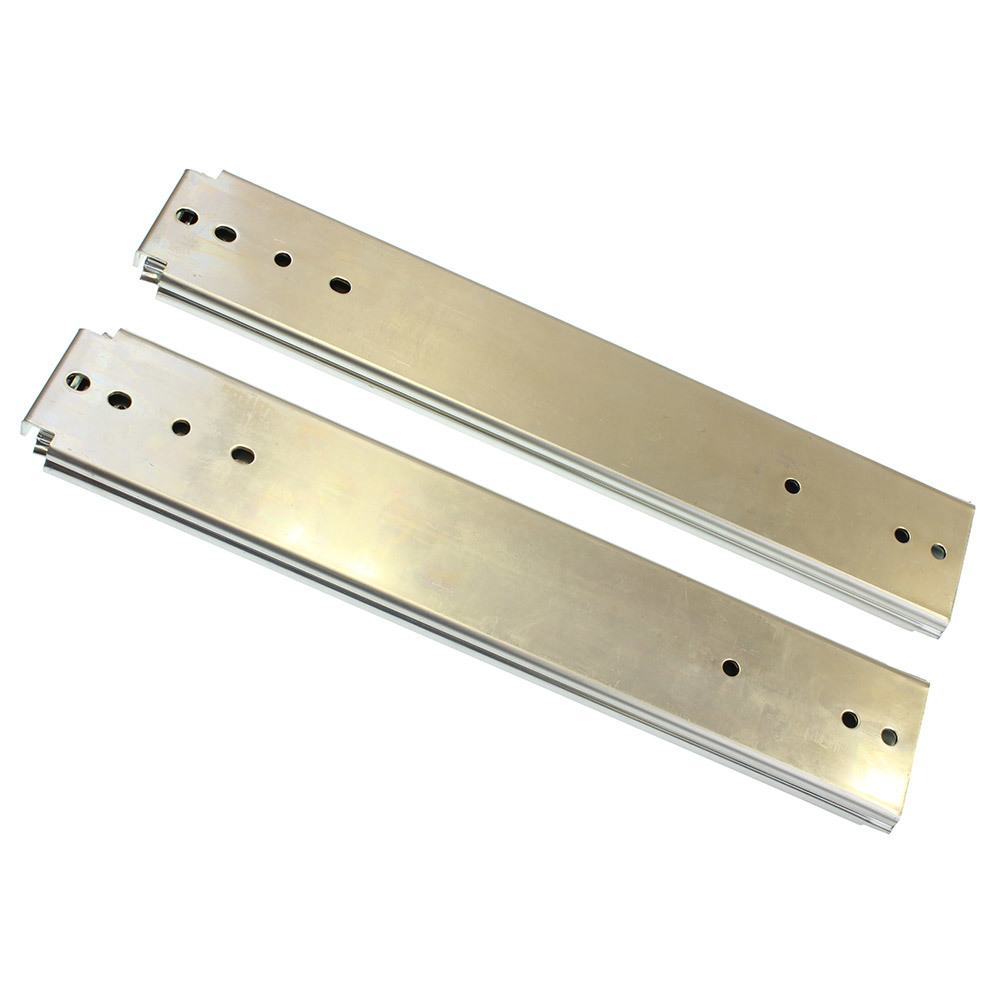

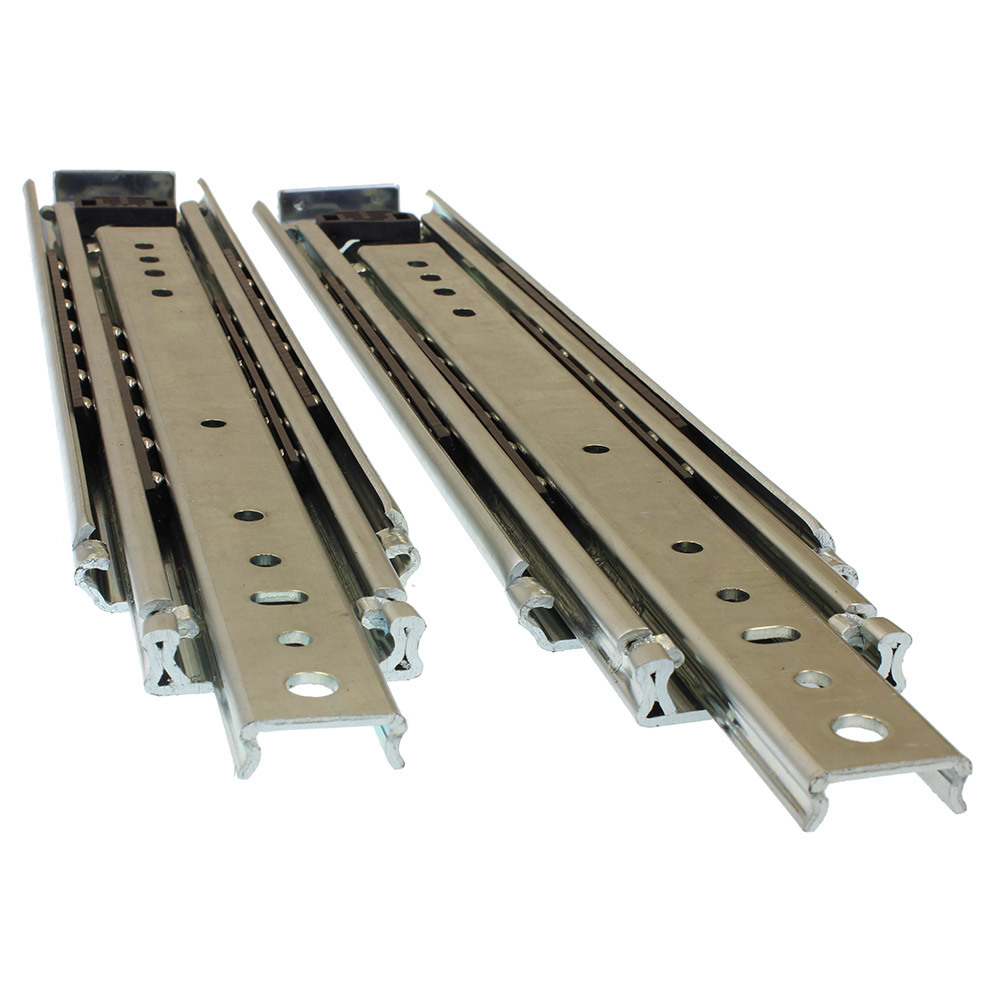

Zinc plated 227kg side mounting drawer slide. Full extension leaves no wasted space.


Description

227 kg heavy duty drawer slide. Tough and robust and great for working or leisure environments utes, vans, camper trailers.

Price is for a PAIR of drawer slides

Features:

  • Load capacity: 227 kg/pair
  • Available in lengths 355mm - 2007mm
  • Material: Steel
  • Zinc Plated
  • Full Extension
  • Guided by: 2 ball cages
  • Fitting to the side panel: screw fixing
  • Fitting to drawer: screw fixing
  • Simple installation

Please note that drawer slides support approximately 30% less weight capacity than indicated by their nominated rating when at full open extension. Please consult the weight load chart for further details.

Installation

This top quality product has been tested in the Australian environment. Please note a few things to consider during installation.

  • When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.
  • Depending on substrate, stainless steel 'flat head' hex screws with NY-lock nuts or stainless steel rivets are recommended.
  • There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
  • Our slides are designed to be mounted horizontally and paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.


Per pair


Calculate Shipping


Pick-up from store - $0.00
Free pick up from our Brisbane and Perth stores is available. Once your order is processed, we will contact you to confirm that your order is ready for collection.


Datasheet

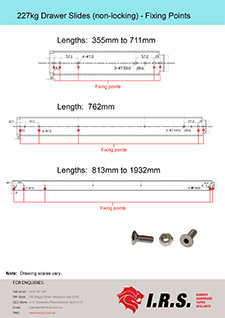

Drawings

DWG files


Product video
