Drawer slide - side mounting - zinc plated - 45kg non-locking

SKU: DSCHLD250

$5.14
Share:

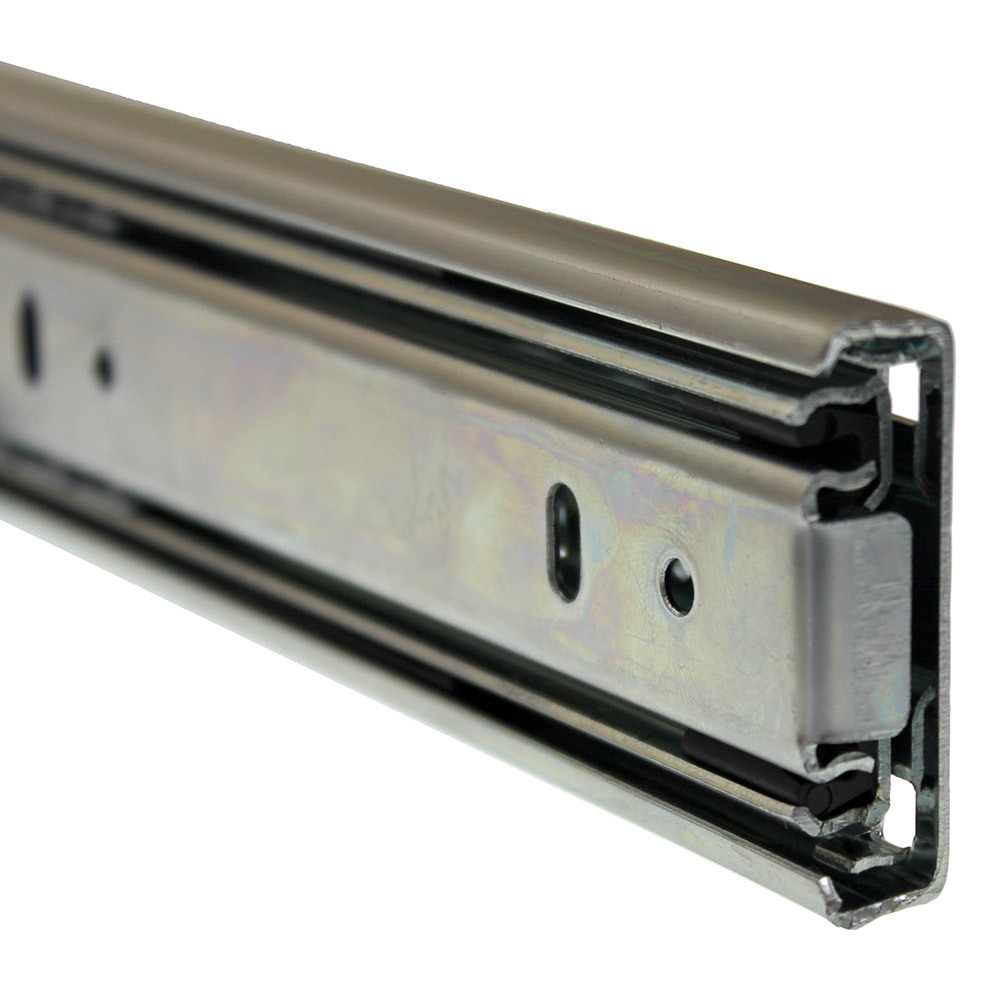

Zinc plated 45kg drawer slide. Full extension leaves no wasted space.


Closed And Extended Length

Per pair

Calculate Shipping



Pick-up from store - $0.00
Free pickup from our Brisbane and Perth stores is available. Once your order is processed, we will contact you to confirm that your order is ready for collection.


Description

Telescopic drawer slides suits applications for holding light objects. Domestic or light industry installations, toolboxes etc.

NOTE: Price is for a PAIR of drawer slides.

Features:

  • Load capacity: 45 kg/pair
  • Lengths: 250mm - 700mm
  • Material: Steel
  • Finish: Zinc plated
  • Guided by: 2 ball cages
  • Fitting to the side panel: Screw fixing
  • Fitting to drawer: Screw fixing, side mounted

Installation

This top quality product has been tested in the Australian environment. Please note a few things to consider during installation.

  • When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.
  • Depending on substrate, stainless steel 'flat head' hex screws with NY-lock nuts or stainless steel rivets are recommended.
  • There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.
  • Our slides are designed to be mounted horizontally and paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.
  • Any questions please contact our office.
Drawer Slide Sizing Guide
    Length (mm)
    300 350 400 450 500 550 600 700 800 900 1000 1100 1200 1300 1400 1500 1500+
Weight (kg) carrying capacity at full extension
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
201+

Slide Weight Rating
Slide Type 45kg 125kg 160kg 227kg 400kg 1 tonne

Drawings:

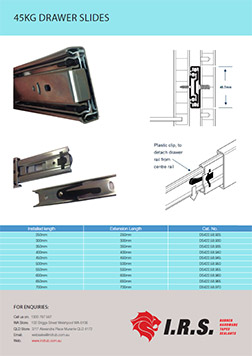

Datasheet


Product video
