RMSmm-1 25kg Two stud and plate rubber mount 25mm dia.

SKU: RMSMM-1

$40.76
Share:

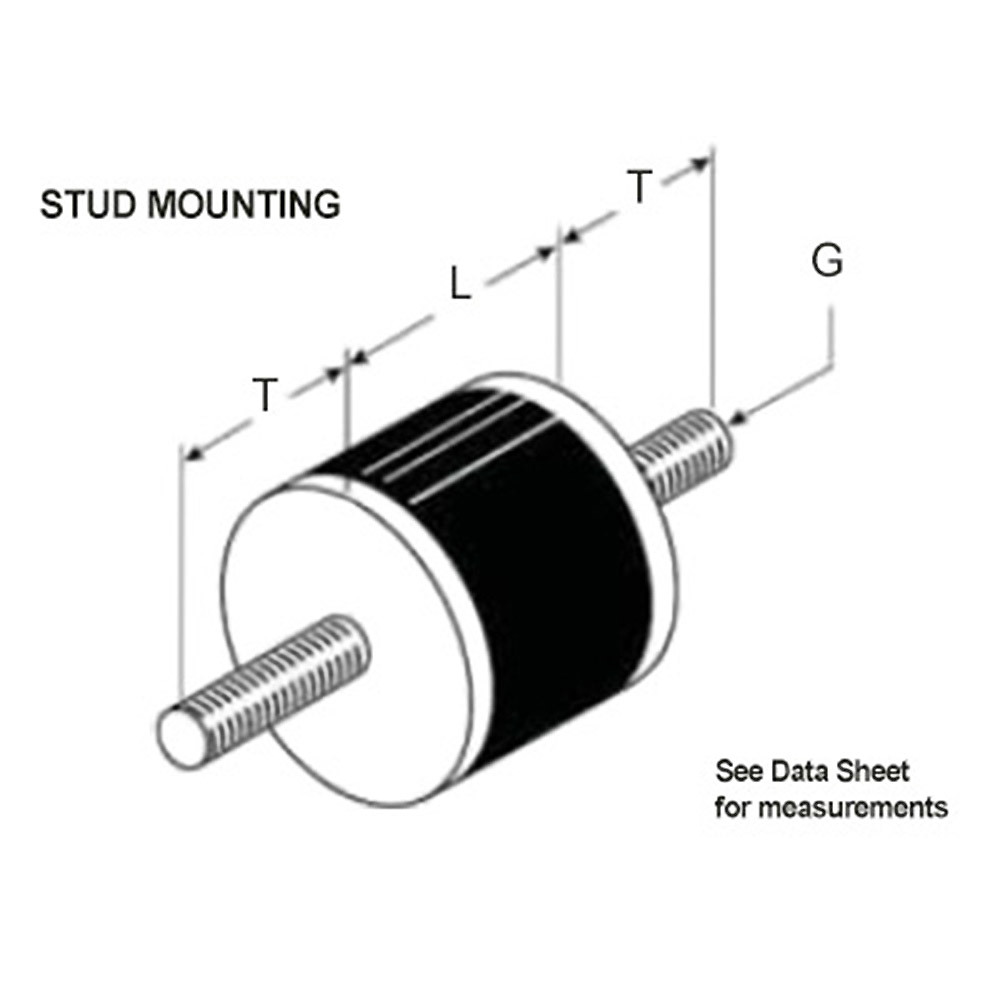

25kg load, two stud and plate rubber mount 25mm dia. X 19mm high


Quantity

Calculate Shipping



Pick-up from store - $0.00
Free pick up from our Brisbane and Perth stores is available. Once your order is processed, we will contact you to confirm that your order is ready for collection.


Description

  • 25kg two stud and plate rubber mount.
  • 25mm dia. X 19mm high X 19mm long bolts.
  • M6 thread, 25kg load, 5kg shear.
  • Ideal for aircon units, generators or any vibrating portable or permanent device.
Application
  • For the mounting of small fans or pumps, small control panels or lightweight equipment into racks.
Features
  • Combined shear and compression capability.
  • Single fastening at ends.
  • Manufactured from natural rubber to give excellent long-term life.
  • All metal parts zinc plated.
Installation
  • Mounting can be loaded simultaneously to the axial and shear loads given in the table.
  • On installation, ensure that the mounted equipment foot and foundation support cover the whole of the stud mount face and that fastening nuts are tightened.

Datasheet
