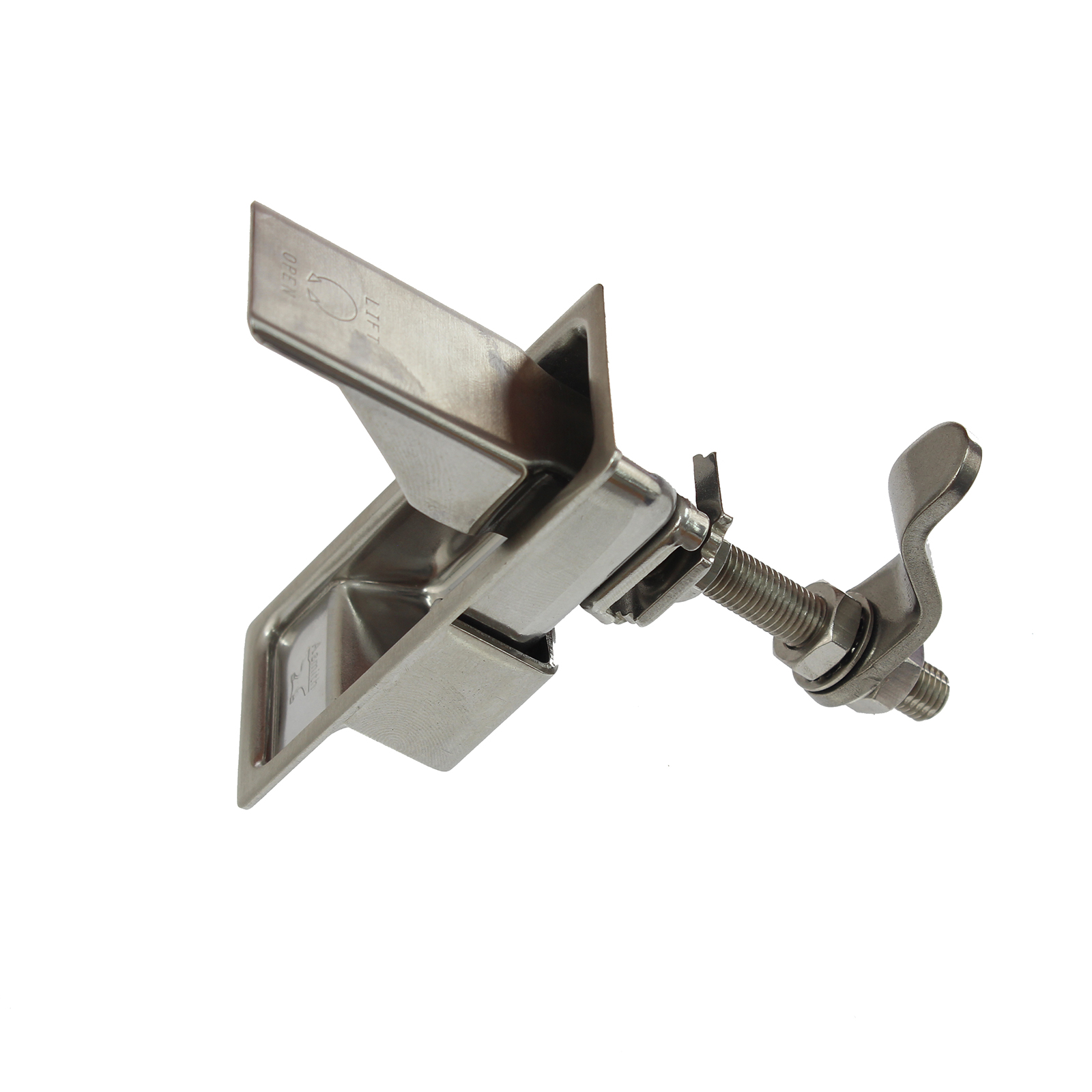

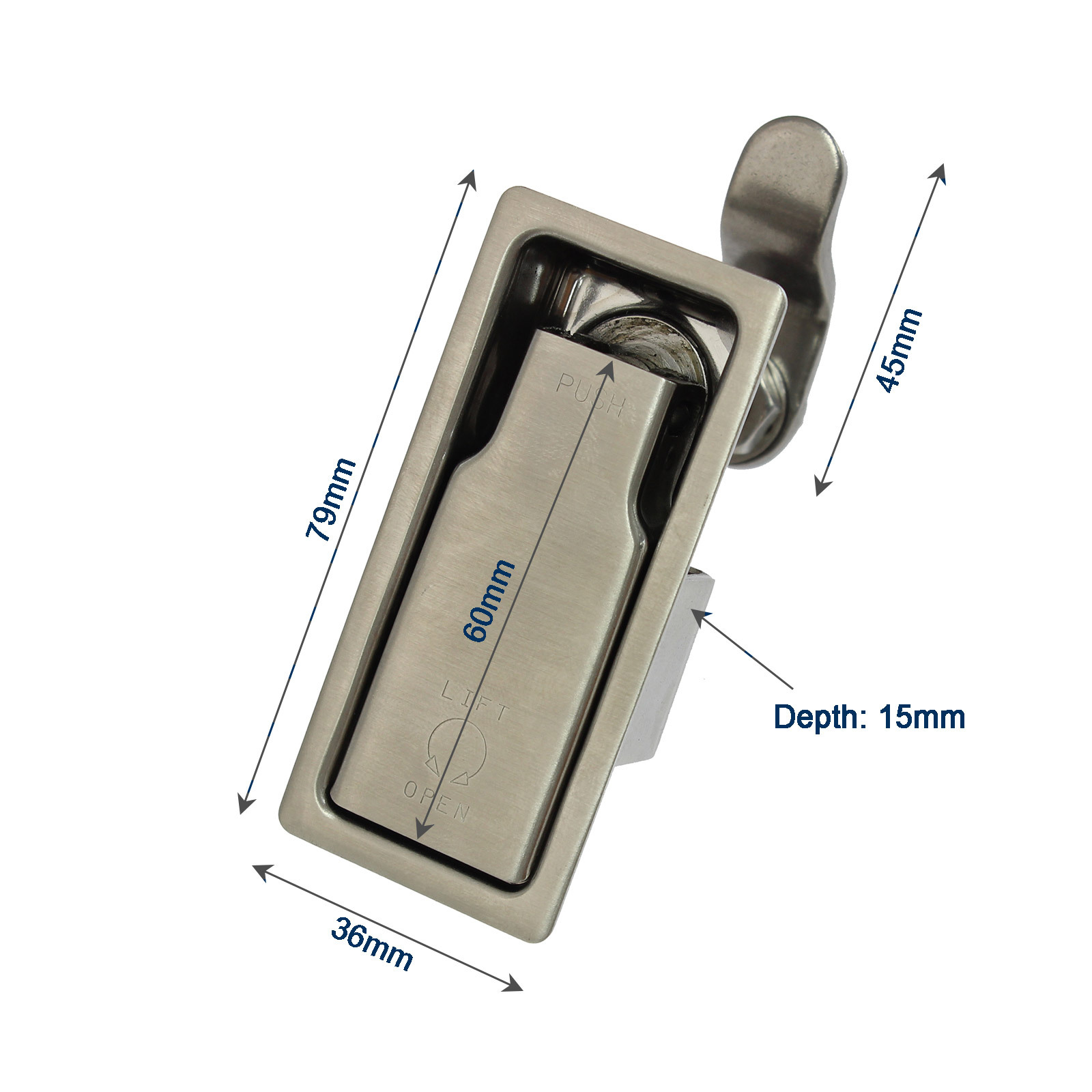

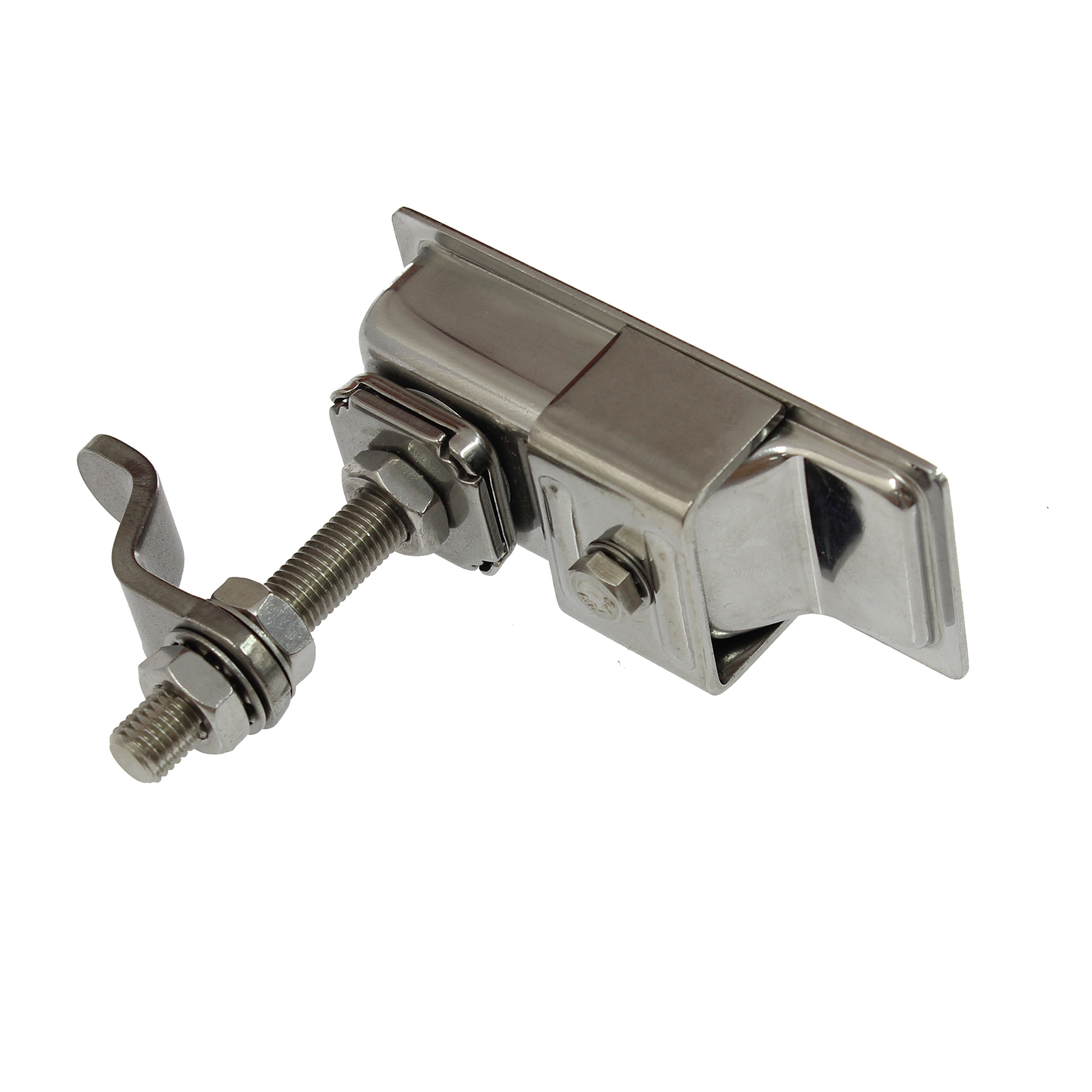

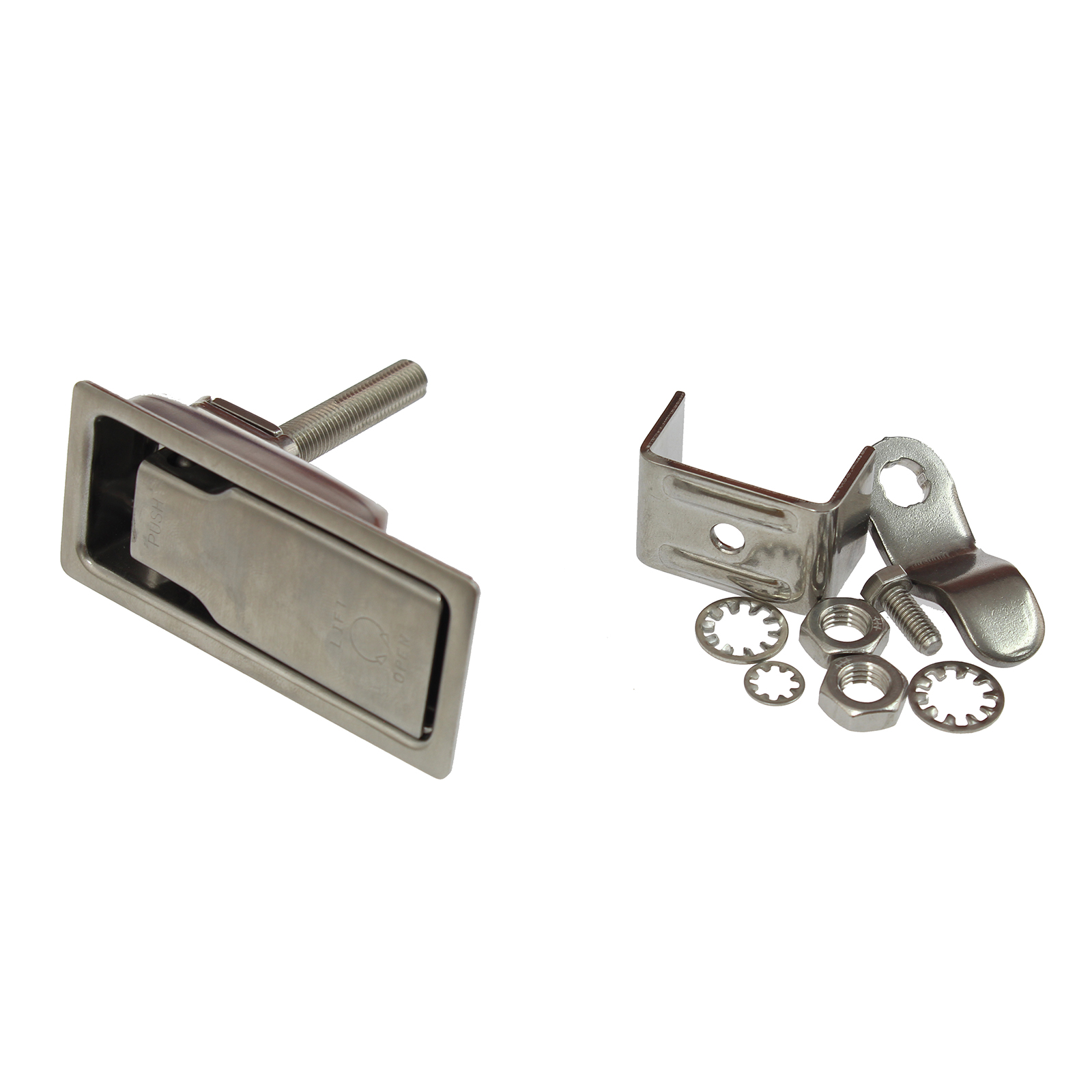

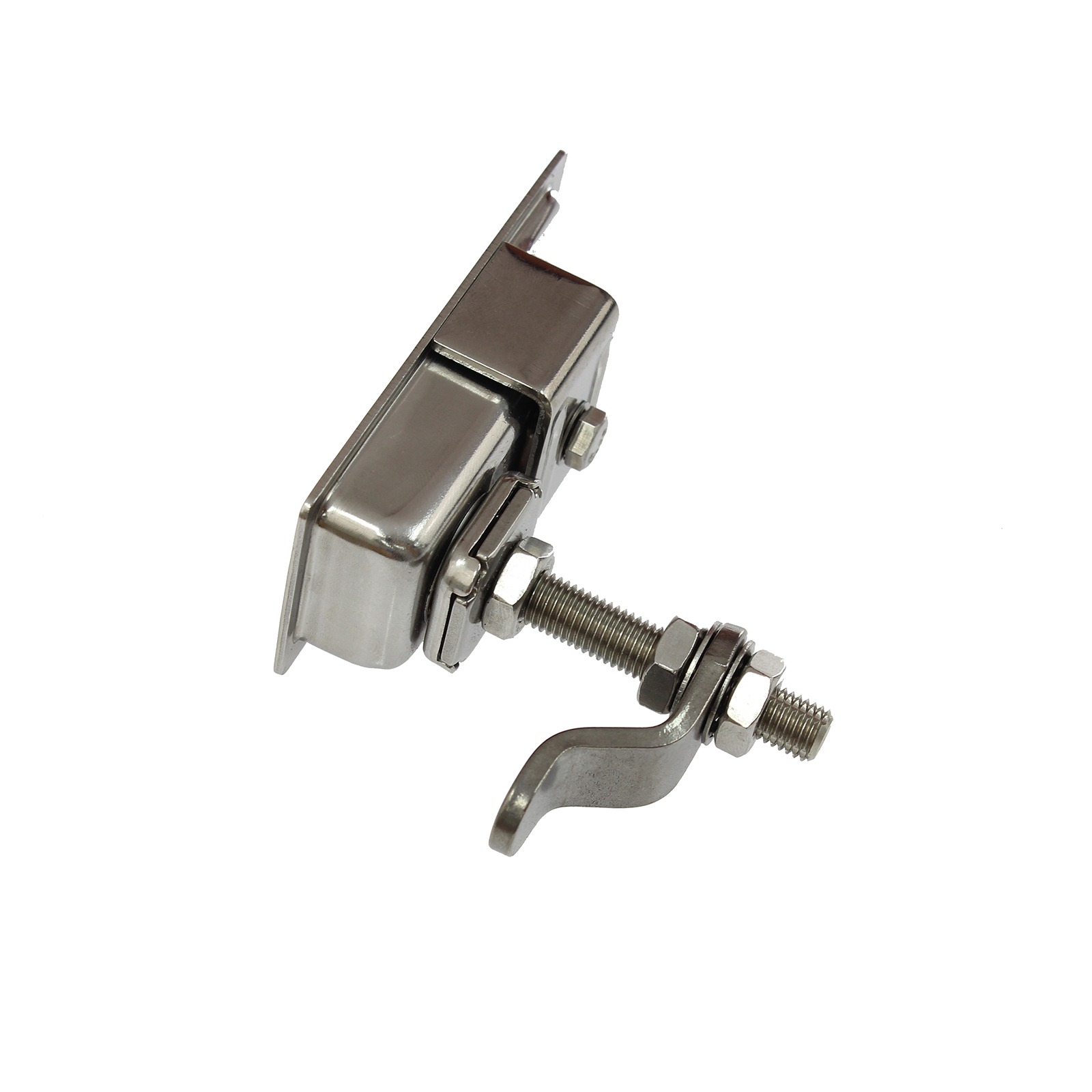

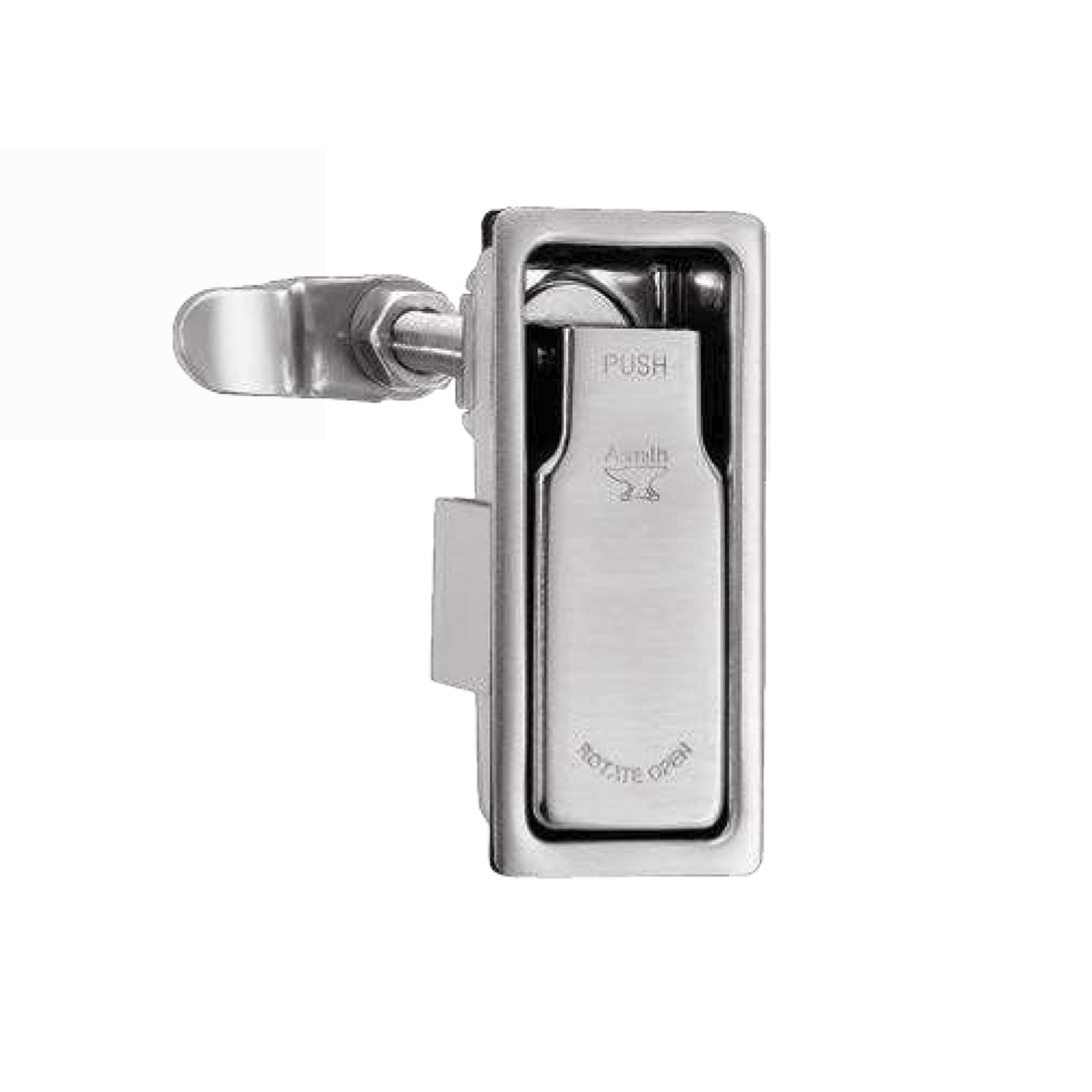

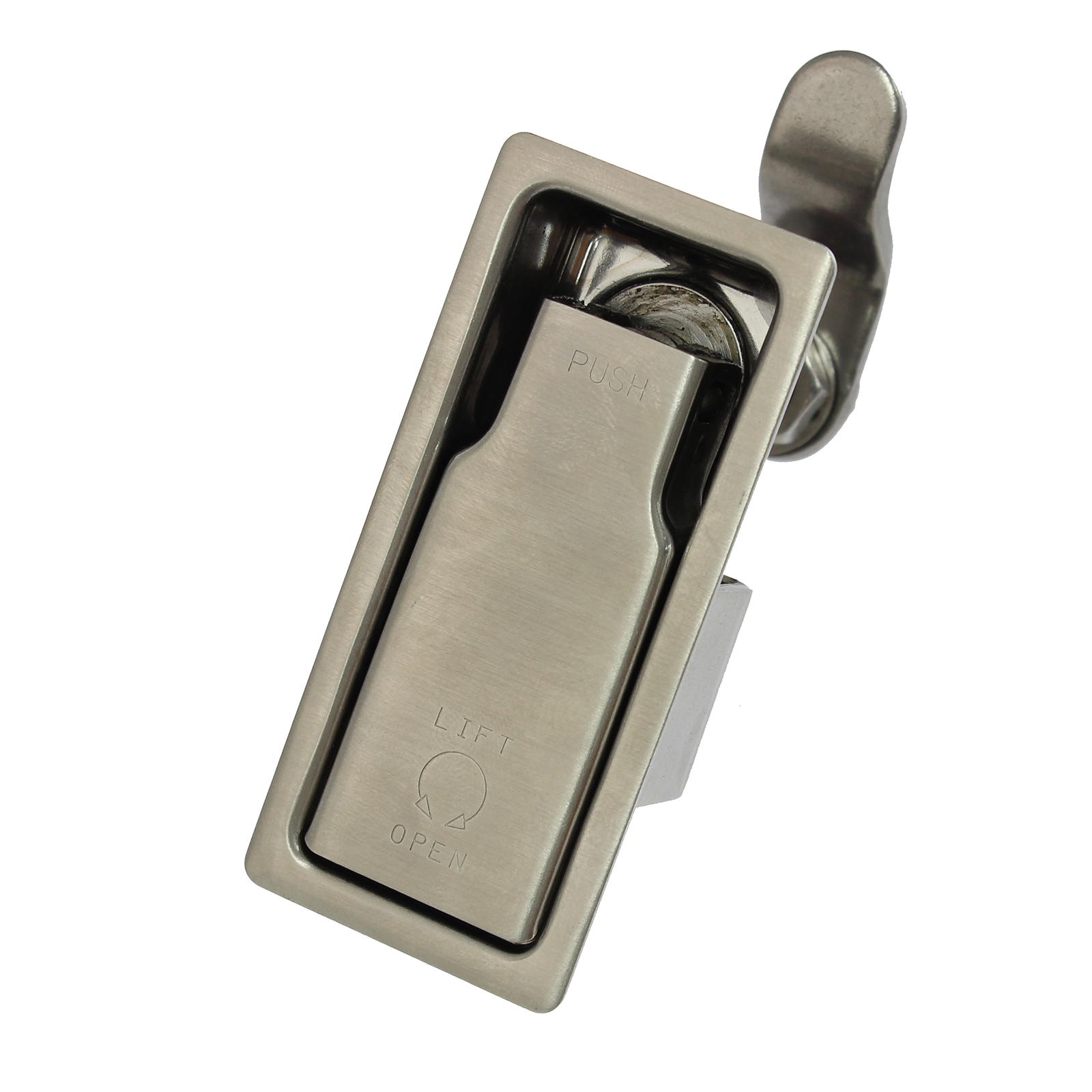

ASMITH Compression latch, lift and turn AS-BS-173715SS

SKU: AS-BS-173715SS

$50.93
Share:


Calculate Shipping



Pick-up from store - $0.00
Free pick up from our Brisbane and Perth stores is available. Once your order is processed, we will contact you to confirm that your order is ready for collection.


Description

  • Dust-resistant, waterproof (IP66), resistance to heat and corrosion.
  • Patent: Pawl is fixed by 4 positioning points and the grooved shaft-bolt, easy for assembly and adjustment. Need only to slide the pawl through the shaft-groove to the correct position, more stable and accurate.
  • Left, right and top opening.
  • The pawl moved forward and reversed vertically 3mm while the compression latch is opened and closed.
  • Pawl can be easily positioned to accommodate the suitable compression
  • For deep boxes, thicker door panels etc.
  • In accordance with RoHS.
  • Material-Body and lever: SUS304 (stainless steel) vibration ground and brushed finish in front.
  • Material-Shaft, pawl and mounting bracket: SUS304 (stainless steel).

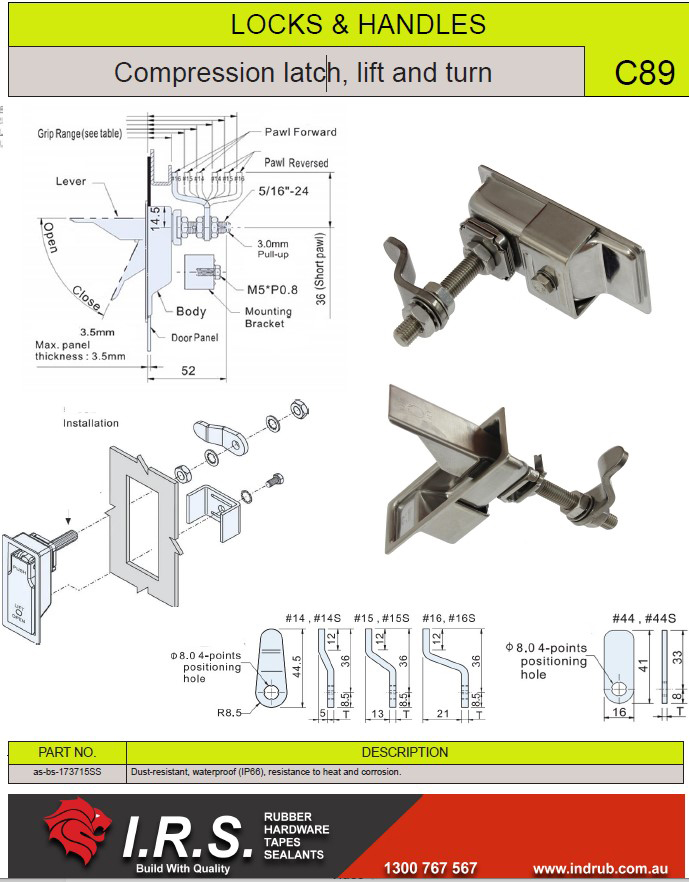

Datasheet
