LL1336 SS 316 Pin hinge 82mm stainless steel 316

SKU: LL1336-316SS

$39.36
Share:

Pin hinge 80mm stainless steel with stainless steel pin 316

Description

Pintle Hinge 82mm, 316 Stainless Steel

Ideal for Marine aplications, switchboard doors, electrical cabinets and tool box lids

Features:

  • 316 Stainless Steel
  • 6mm 316 Stainless steel Pin
  • Fixing holes 28.5mm center to center
  • 4 x Screws

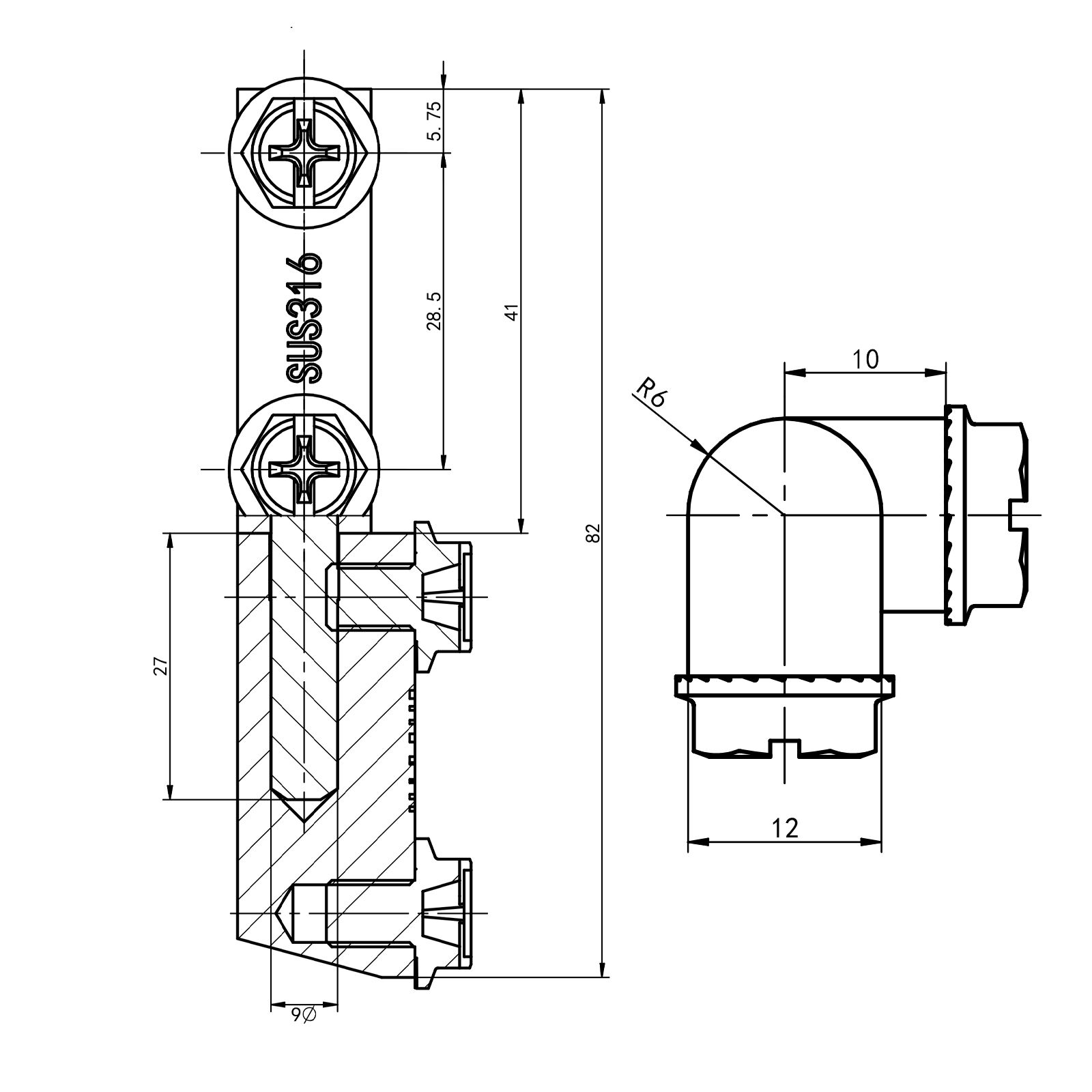

Dimensions:

  • body height : 10mm
  • Body length:  82mm
  • Pin diameter:  6mm
  • Pin length:  27mm
