Vertical sliding window

SKU: WV000620664-5990VS

Description

IRS 5900 Series Vertical Slider is designed to provide you with the very best quality, ease of install and operation.

Features

Options available include fixed, horizontal, or vertical slide and exit windows
Easy to use, robust mechanism, with easy-grip handles
Smooth aerodynamic low profile rv windows
Frames & screen colour matched
Solid aluminium window construction
Wall thickness: 2mm - 57mm
Tempered safety glass
Dark tint GL20 UV protection
Water egress design
FMVSS 49CFR 571.205
ANSI Z26.1

Applications

Recreational vehicles
RV Caravans
Portable accommodation
Horse transport trailers and motorhome
Truck sleeper cabs
Caravan window replacement
4 X 4 camper trailers
Trade canopies
Camper vans
Automotive applications
Caravans

Dimensions

The window is designed for cut out size

447mm x 546mm
Radius corners: 81mm

Material

Solid aluminium construction

Included

Window

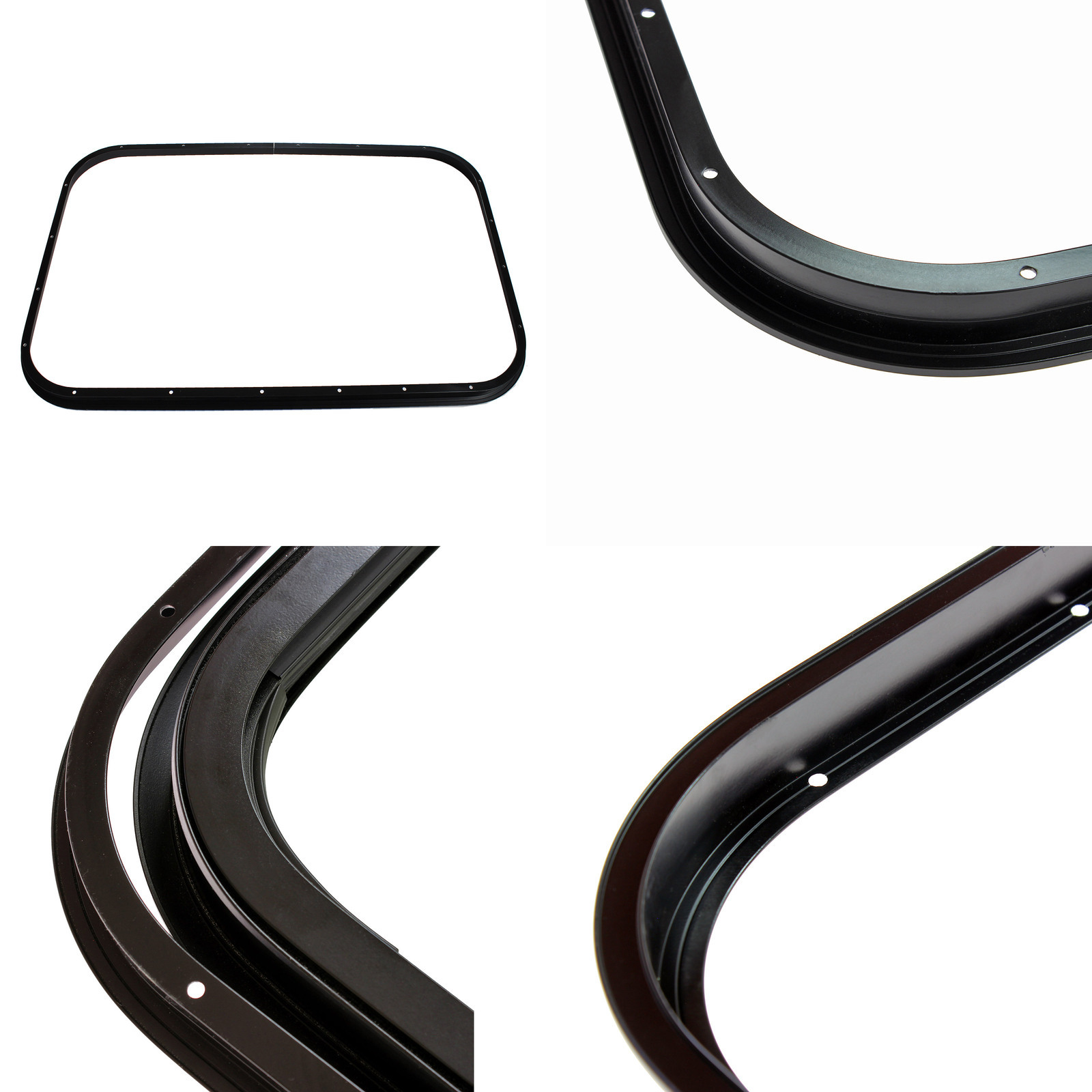

Clamping frame
Fixing screws

Clamping rings

Each clamping ring size can accommodate two wall thicknesses. For example, the 2mm & 56.5mm clamping ring will accommodate a 2mm thick wall. Simply flip the ring to accommodate a 56.5mm wall.

Window accessories

Delivery timeframes

Delivery from our Brisbane office. Please allow 2 days
Delivery from our Perth office. Please allow 12-18 days.

Pickup available

Pickup available from our Brisbane office. Please allow 2 days lead time.
Pickup available from our Perth office. Please allow 10-16 days lead time.

Installation

It is highly recommended that your window be fitted by an authorised and reputable installer to be covered under our warranty guidelines.

This will help minimise any issues that may arise, mainly water leaking, due to incorrect installation. We also suggest using the Tesa tape and adhesive sealant accessories listed above that will enhance the secure fitment of your new window.

Warranty

Our windows come with a 1 year warranty
Please note: incorrect installation will void your warranty.
